The new and easy way to port data from instruments into your own software or forms. QR Codes are free from any license and are clearly defined and published as an ISO Standard. QR = Quick Response.















DIGITAL ANNEMOMETERS           FLUE GAS ANALYSERS    DIGITAL MANOMETERS


The  Blueline® Range is a generation of highly accurate instruments with transportable data

generated to an on-instrument readable QR Code.

The QR code can be read by any IOS / Android or Windows App on a smartphone or tablet

with camera and quickly converted to a field coded text based data stream.

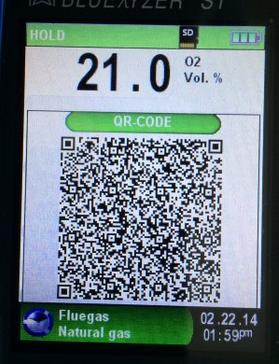

EXAMPLE – A QR CODE IS GENERATED ON THE SCREEN OF THE BLUELYZER FLUE

GAS ANALYSER FROM MEASURED DATA IN TWO EASY STEPS

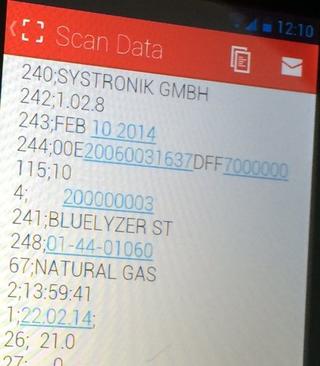

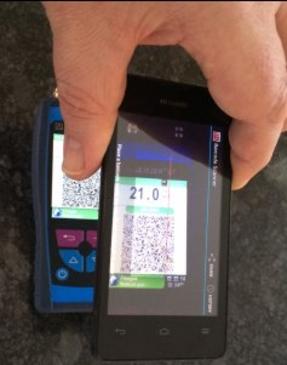

The screen image is scanned with the appropriate media APP and a text field coded file is created





















Screen image is scanned with media APP and a text field coded file is produced

For bespoke software all the data coding is provided for your IT team who can interpret field data and easily manipulate it to slot seamlessly into your own application.

The raw text data produced can also be read directly on smartphone Apps, imported into proprietary software such as Word or Excel or custom designed to fit existing statutory or your in-house forms.

EXAMPLE DATA FROM S4600-ST DIGITAL MANOMETER WITH FIELD EXPLANATIONS


Field:       Data:                                                     Explanation:
240;          BlueLine® Instruments                          Company  Name
241;          S4601 ST                                              Instrument Type
242;          1.00.6                                                    Software Version
243;          Nov 22 2013                                          Software Release Date
244;          00E200600316377429000000              Factory ID
248;          01-66-00021                                          Instrument Serial Number
1;             19.02.14;                                                Date
2;             16:16:22                                                 Time
115;         13                                                           Program Status (internal use)
12;           20.23                                                      Current Pressure hPa/mBar
10020;     20.10; 2                                                  Start Pressure of timed run –set by the operator 1-999 minutes
10030;     20.20; 2                                                  Finish Pressure of timed run –set by the operator 1-999 minutes
10040;     0.10;   2                                                  Pressure Difference/LossType your paragraph here.


To see how easy it is to integrate QR Code Data into your system. The link below explains QR Code use and protocols in BlueLine® instruments

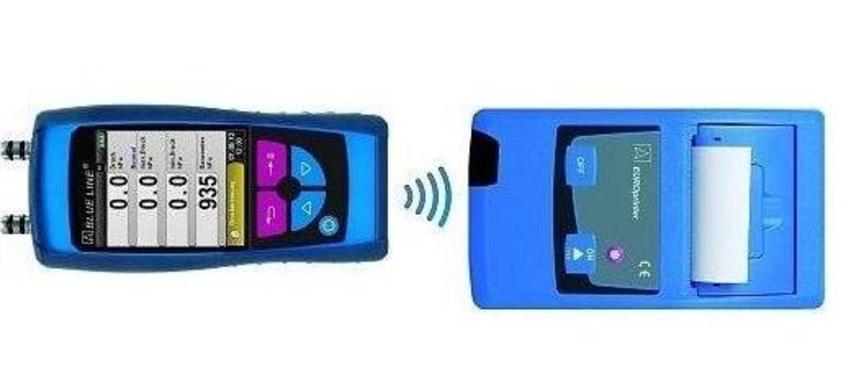

and / or just be printed out when you need it on paper or self adhesive labels

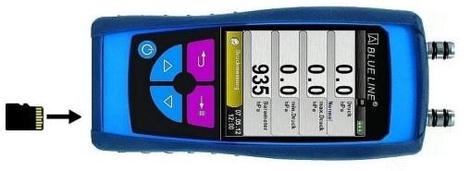

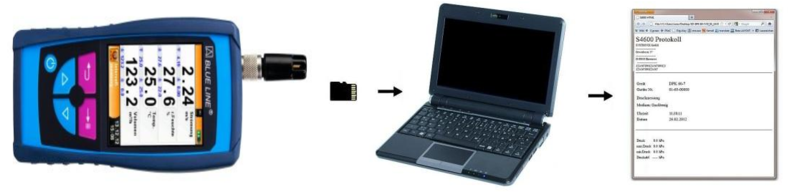

Data can also be saved onto an SD Card in your instrument for printing and archiving at a later date

QR Code Data Handling in BlueLine® Instruments

QR Code Readers are available for all iOS / Android / Windows based media


Scan the code below to see data produced as a coded text file on your own media

Eurosoft for Windows

Operating Systems:

Windows XP, Windows Vista, Windows 7, Windows 8/8.1

Works with the following devices:

BLUELYZER ST, EUROLYZER STx, MULTILYZER STe,

S4600 ST, BlueAir ST










Functions:

- Customer Database Management
- Measurement protocol editor
- Change Order of values on screen and instrument
- Create your own fuel parameters
- See live values on screen complete with line and bar graphs*
- Remote Viewing and Control of instrument *
 * The USB-Bluetooth Smart Dongle is required to use these functions

USB-Bluetooth Smart Dongle available from Blueline Instruments
Part No: 500856 £ 51.00






Download a copy of the Eurosoft PC Sofware by clicking on the Eurosoft Logo below:-

Eurosoft Mobile App ( iOS or Android )

Operating Systems:

iOS 6.0 (Bluetooth 4.0) or higher for Bluetooth Smart connection
Android 4.0 or higher for Bluetooth connection
Android 4.3 or higher for Bluetooth / Bluetooth Smart connection

Works with the following devices:

Bluetooth: EUROLYZER ST/STe, MULTILYZER NG, MAXILYZER NG/NG Plus
Bluetooth Smart: BLUELYZER ST, EUROLYZER STx, MULTILYZER STe, S4600 ST, BlueAir ST













Functions:

- Customer Database Management
- Measurement protocol editor
- Change Order of values on screen and instrument
- Create your own fuel parameters
- See live values on screen complete with line and bar graphs
- Remote Viewing and Control of instrument

- Share the measurement values / protocols  via installed Apps (Email, Social Networks etc.)
- Transfer customized protocols from EuroSoft mobile Windows version


Download the iOS or Android App by clicking on the Logo or scanning the QR Code below
