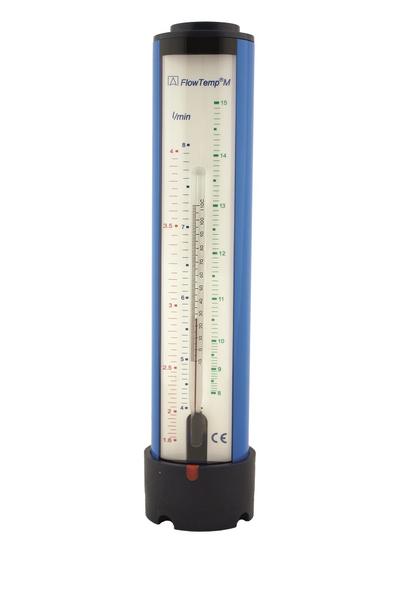

FLOWTEMP M

Domestic & Industrial Flue Gas Analysers

Digital Temperature & Pressure Meters

Natural Gas Leak Detectors

Air Velocity Instruments

Personal CO Monitors

Water Flow & Temperature Measurement

General Data

Dimensions Housing (H x ⌀): 250 x 58 mm
Weight: Approx. 232 g
Material: Plastic

Technical Specifications


Temperature:

Measuring range:          -10 °C ... + 110 °C

Resolution:                    1°C

Accuracy:                    ± 2°C

Measuring principle:Glass tube filled with kerosene


Volumetric flow:

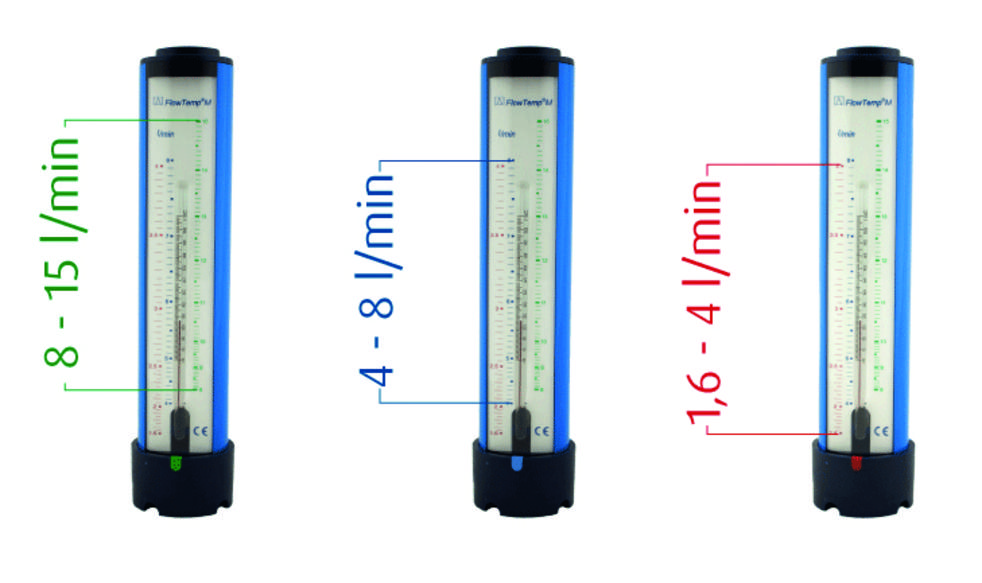

Measuring range:          1.6 ... 15 l/min
Resolution:

0.05 l/min 1,6 - 4 l/min)
0.1 l/min (4-15 l/min)
Accuracy:
± 0.3 l (at 5 l/min)
5 % rdg (at 5 l/min)
Measuring principle:  Tailback method

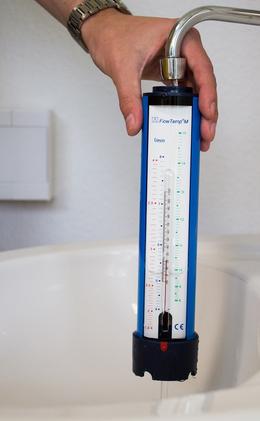

MEASURES WATER FLOW & TEMPERATURE AT THE SAME TIME

IDEAL FOR:-


Quickly setting operating flow rates to manufacturers specifications


Quickly checking you have adequate static and working pressure prior to installations.
