FLOWTEMP ST

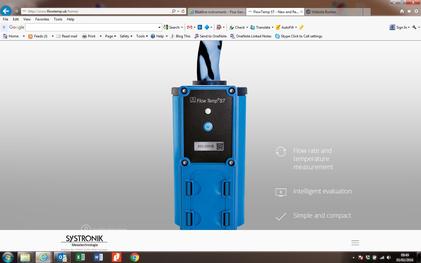

THIS PRODUCT HAS ITS OWN WEBSITE CLICK THE IMAGE BELOW FOR MORE INFORMATION & VIDEO FOOTAGE

Technical Data

 Temperature       Range:                    0 °C ... + 100 °C

                             Resolution:             0,1 °C

                             Accuracy:               ± 2 °C  or ± 3% RDG

                             T90:                        40 s

                             Sensor:                   PT1000
  Volume flow        Range:                   1,5 ... 17,5 l/min

                             Resolution:              0,1 l/min

                             Accuracy:                ± 0,3 l/min or ± 5 % RDG

                             T90:                         10 s

                             Sensor:                    Capacitive Sensor

 Data interface       Bluetooth Smart – Single Mode (BLE = Bluetooth Low Energy)

 Units                                                      l/min, l/h, l/s, m³/s

 Power supply                                        2 x AAA (Micro)

 Duration                                                Up to 50 hours
 Operation temperature                          + 5 °C ... + 80 °C
 Storage temperature                             - 20 °C ... + 80 °C

 Housing                                                  Plastic (PC+ABS)

 Dimensions                                            158 mm x 97 mm x 71 mm
 Weight                                                    370 g (including batteries)
 Keyboard                                                Foil keyboard (1 key)
 Protection                                               IP65 & IP67 (standard DIN EN IEC 60529)


MEASURES WATER FLOW & TEMPERATURE AT THE SAME TIME

RESULTS DIRECTLY TO YOUR BLUELINE INSTRUMENT OR

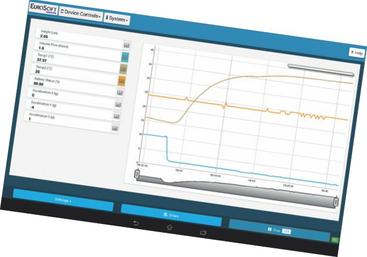

STRAIGHT ONTO MOBILE DEVICE OR PC WITH NEW EUROSOFT APP

Illustrated with supplied purpose

built waterproof carry case
